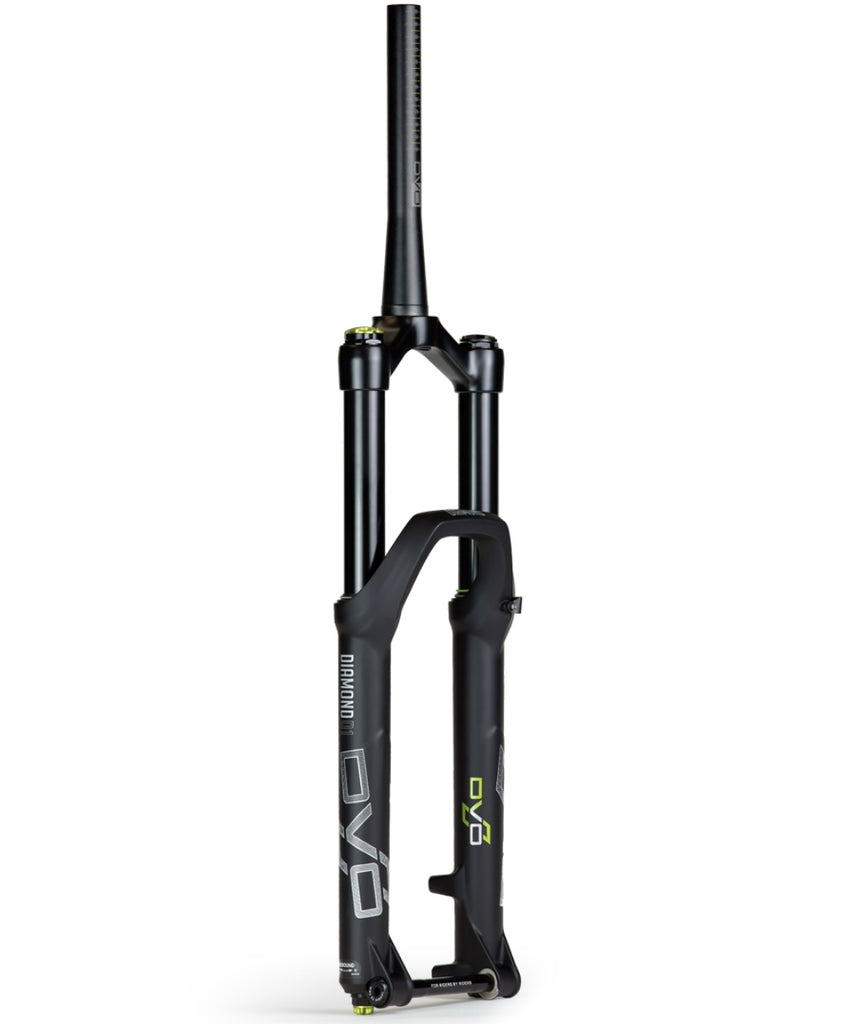

DVO 2022 Diamond fork D1 35mm

  • Sale
  • Regular price $1,119.03
Tax included.

Diamond for the Rough

In a time where standards are being reinvented every day, it’s important to look through the clutter to find clarity. Find out what’s actually here to stay and make an impact. We start with a simple question: What’s going to improve the product and rider?

The new Diamond has a host of features to cater to the aggressive rider who demands more. We gave the fork a top to bottom chassis overhaul with 10mm wider BOOST spacing. This amplifies steering precision and control in the moments of “ultimate shred”. We also increased the tire clearance, allowing you to utilize a bigger tire and still have clearance for mud.

Six clicks of low speed compression give quick access to firming up the fork for pedaling, opening up for descending, and mid settings for everything in between. Over thirty clicks of High Speed Compression give precise control for support on big hits. Shim stack controlled rebound that is 100% dynamic. meaning, the rebound is controlled based on the speed at which oil flows through the system. The fork will react to what you throw at it and be ready for what’s next. Our industry exclusive OTT feature really sets DVO product apart from anything else. It allows you to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise. You really do the best of both worlds.

Combining the stiff chassis characteristics with our exclusive features and damping design give our forks a unique ride feel unlike anything else on the market.


  • Adjustments:
    High/Low Speed Comp. - Rebound - OTT
  • Travel:
    27.5=150-170 | 29=140-160
  • Starting Weight
    27.5 = 2100g | 29 = 2150g
  • Standard Offset Crown:
    Offset: 27.5=44mm | 29=51mm
  • Short Offset Crown:
    Offset: 27.5=37mm | 29=44mm
  • Axle to Crown:
    27.5 = 565mm | 29 = 572mm (at max travels)
  • Stanchions:
    35mm Tapered Alloy
  • Wheel Size:
    27.5 & 29
  • Axle:
    15mm Boost
  • Steerer Options:
    Tapered Alloy
  • Disc:
    Direct Mount 160mm
  • Color Options:
    Black, Green, Blue
